Produkt-Beschreibung

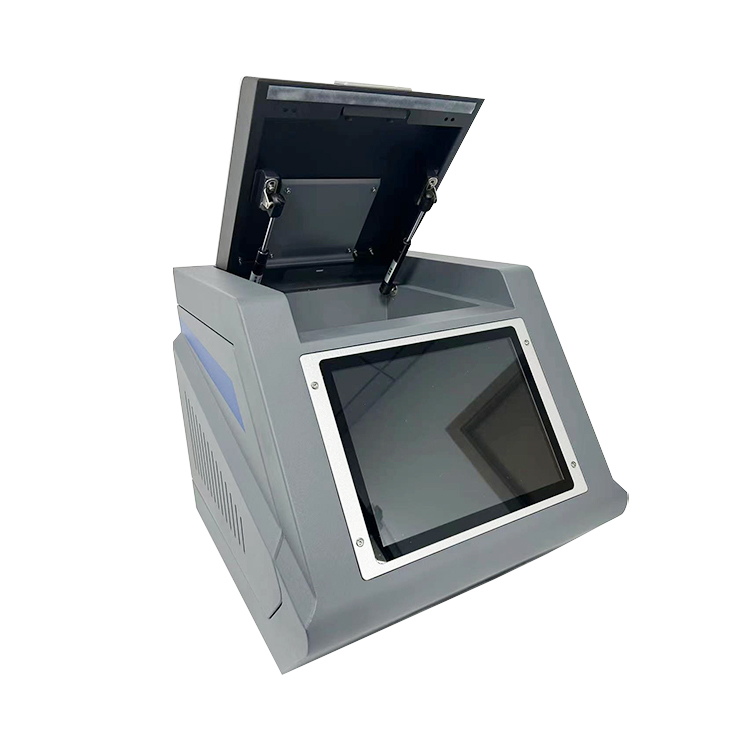

Gold Tester

X-ray Fluorescence (XRF) Spectrometer is a precision testing instrument integrating cutting-edge spectral analysis technology and industrial application design. Based on the principle of X-ray fluorescence analysis, it realizes rapid and accurate qualitative and quantitative detection of element composition in various substances. Integrating core technologies from multiple phases of national scientific and technological research and development as well as nearly 25 years of industry application experience, the instrument, relying on its high sensitivity, wide adaptability and safe and reliable performance, is widely used in electronic manufacturing, material metallurgy, environmental monitoring and other fields, providing authoritative data support for hazardous substance control and material composition analysis.

Technical Specifications

Model	BXT-EDS9800T	BXT-EDS8800T	BXT-EDS9800	BXT-EDS8800	BXT-EDS7700
Analysis range	ppm～99.99%
Measurement accuracy	±0.01%		±0.03%
Test form	Solid, powder, liquid
Light tube voltage	5KV～50KV
High-voltage power supply	0～50KV
Light tube flow	0uA～1000uA
Camera	High-definition camera
Filter	Multiple customizable switching options available
Detector	SDD		Si-PIN
Resolution	135±5eV		145±5eV		/
Multistage Analyzer	KEYRAY-DMCP
Sample chamber dimensions(mm)	31027090	31027080	31027090	31027080	31027090
Test time	3～60S
Measured elements	From sodium (Na) to uranium (U), among 82 elements (excluding the light elements)
Analysis software	KEYRAY-FP Qualitative and Quantitative Analysis Software
External dimensions(mm)	480440368	460390360	480440368	460390360	450400390
Weight	36kg	38kg	36kg	38kg	36kg
Environmental temperature	5～38℃				5～30℃
Relative humidity	15%～90%				15%～85%
Power supply	AC220V±5V,50/60Hz No high-power electromagnetic or vibration interference sources nearby

Model	BXT-EDS6000T	BXT-EDS5800PLUS	BXT-EDS5800T	BXT-EDS3900C	BXT-RAY3000
Analysis range	ppm～99.99%	0.01%～99.99%
Measurement accuracy	0.05%		±0.05%	0.07%	±0.1%
Test form	Solid, powder, liquid
Light tube voltage	5KV~50KV
High-voltage power supply	0~50KV
Light tube flow	0 uA~ 1000 UA
Camera	High-definition camera
Detector	Novel Si-PIN Detector	Proportional Counter Detector	Novel Si-PIN Detector	Proportional Counter Detector
Multistage Analyzer	KEYRAY-DMCP	Digital multi-channel			Multi-channel simulation
Sample chamber dimensions(mm)	31027090	270 * 260 * 100	310* 270* 90	320 * 250 * 120	32532590
Test time	3~60S	5~60S
Measured elements	74 elements ranging from Potassium (K) to Uranium (U) (excluding light elements); 26 elements can be analyzed in a single run, including Gold (Au), Silver (Ag), Copper (Cu), Zinc (Zn), Nickel (Ni), Cadmium (Cd), Tin (Sn), Iron (Fe), Rhenium (Re), Tungsten (W), Ruthenium (Ru), Osmium (Os), Indium (In), Manganese (Mn), Rhodium (Rh), Platinum (Pt), Lead (Pb), Palladium (Pd), Cobalt (Co), Antimony (Sb), Chromium (Cr), Iridium (Ir), Germanium (Ge), Mercury (Hg), Titanium (Ti), and Molybdenum (Mo).			Detect 24 types of metals: gold, silver, copper, zinc, nickel, cadmium, tin, iron, rhenium, tungsten, ruthenium, osmium, indium, manganese, rhodium, platinum, lead, palladium, cobalt, antimony, chromium, iridium, germanium, mercury (rhenium > 5%, tungsten > 5%, iridium > 5%)	Gold(Au), silver(Ag), platinum(Pt), palladium(Pd), copper(Cu)
Analysis Software	KEYRAY-FP Qualitative and Quantitative Analysis Software
External dimensions(mm)	450400390	520 * 450 * 400	450 * 400 * 390	450 * 430 * 390	430430350
Weight	36kg	38kg	36kg	36kg	33kg
Environmental temperature	5～30℃				5～38℃
Relative humidity	15%～85%				15%～90%
Power supply	AC220V±5V,50/60Hz No high-power electromagnetic or vibration interference sources nearby

Model	BXT-EDS3900	BXT-EDS8800PLUS	BXT-EDS9900PLUS	BXT-RAY6000
Analysis range	0.01%~99.99 %	0.005um~50um	1ppm~99.99%	0.01%6~99.99 %
Measurement accuracy	士0.1%	0.005um (Optimal Precision of Single-Layer Coating)	0.015%ppm	0.05%
Test form	Solid, powder, liquid
Light tube voltage	5KV ~ 50KV
High-voltage power supply	0 ~50KV
Light tube flow	0 uA ~ 1000 uA
Camera	High-definition camera
Detector	Proportional counter detector	Si-PIN	Electrically Cooled SDD Detector	Novel Si-PIN Detector
Multistage Analyzer	Multi-channel simulation	Digital multi-channel	KEY-DMCP	Digital multi-channel
Sample chamber dimensions(mm)	31028090	450310120	450310120	31023090
Test time	5~60S	5~100S	10~100S	5~60S
Measured elements	Gold(Au), silver(Ag), platinum(Pt), palladium(Pd), copper(Cu)	Among the 82 elements ranging from Sodium (Na) to Uranium (U) (excluding light elements)	All elements ranging from Sodium (Na) to Uranium (U)	Among the 74 elements ranging from Potassium (K) to Uranium (U) (excluding light elements)
Analysis Software	KEYRAY Qualitative and Quantitative Analysis Software		KEYRAY-FP Qualitative and Quantitative Analysis Software	KEYRAY Qualitative and Quantitative Analysis Software
External dimensions(mm)	400430350	400430350	380372362	395-350*340
Weight	33kg	46kg	30kg	25kg
Environmental temperature	5～38℃		-5°C ~ 40°C	5～30℃
Relative humidity	15%～90%			15%～85%
Power supply	AC220V±5V,50/60Hz No high-power electromagnetic or vibration interference sources nearby

High Precision Fluorescent Spectroscopy Metal Analyzer Spectrometer Gold Metal Detector Test Instrument 0

Applicable scenarios

High Precision Fluorescent Spectroscopy Metal Analyzer Spectrometer Gold Metal Detector Test Instrument 1

Product structure

High Precision Fluorescent Spectroscopy Metal Analyzer Spectrometer Gold Metal Detector Test Instrument 2

FAQ

1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South
America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central
America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler

4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The
service is good

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese

Größe und Tag:

Place of Origin:	China
Markenname:	BAXIT
Model Number:	BXT-EDS9800T/BXT-EDS8800T/BXT-EDS9800/BXT-EDS8800

Minimum Order Quantity:	1
Preis:	US $5826.0 - 38842.0 / Unit
Packaging Details:	Carton box/Wooden box
Delivery Time:	5-8 Work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs
